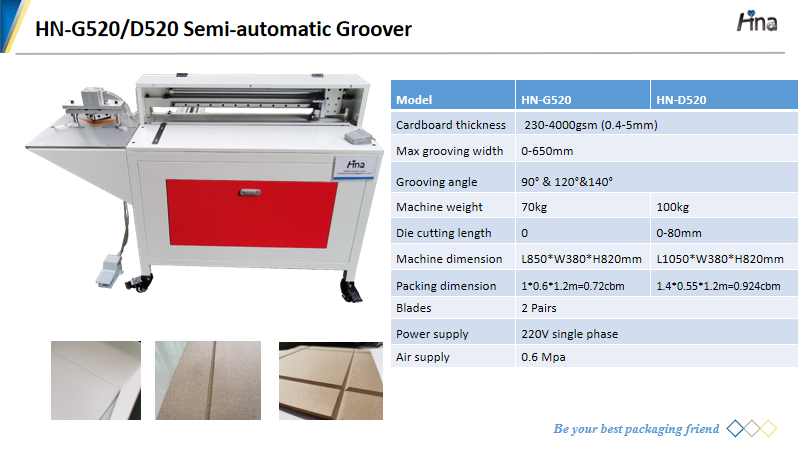

| Name: | HN-G520 Sample Groover |
|---|---|
| Cardboard thickness: | 1-5mm |
| Max cardboard size: | 650mm |
| Grooving angle: | 90° & 120°&145° |
| Machine weight: | 70KG |
| Machine dimension: | L850*W380*820mm |
| Packing dimension: | L900*W400*H980mm |
| Blades: | 2 pairs |
| Power supply: | 220V single phase |
| Air supply: | 0.6 Mpa |
| Inquiry |
Product Description

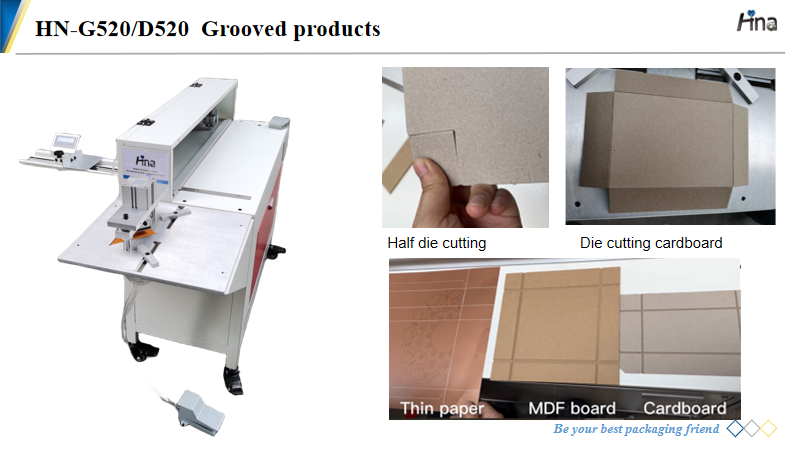

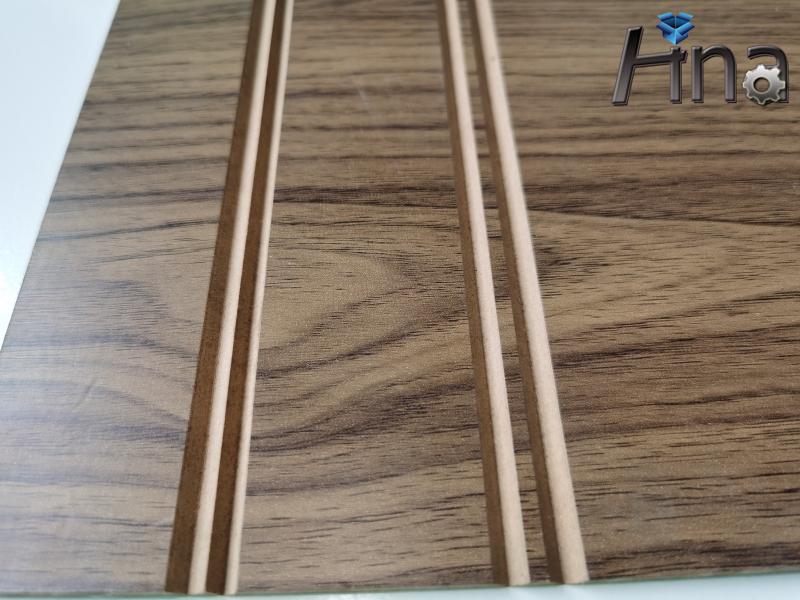

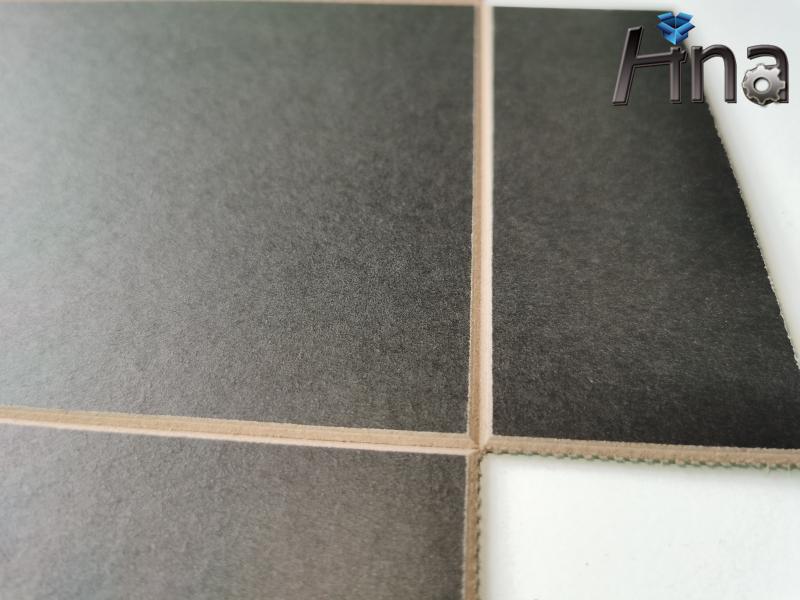

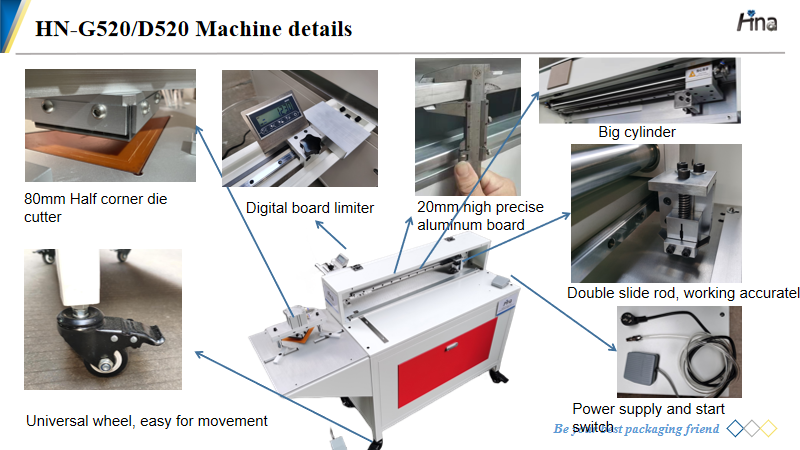

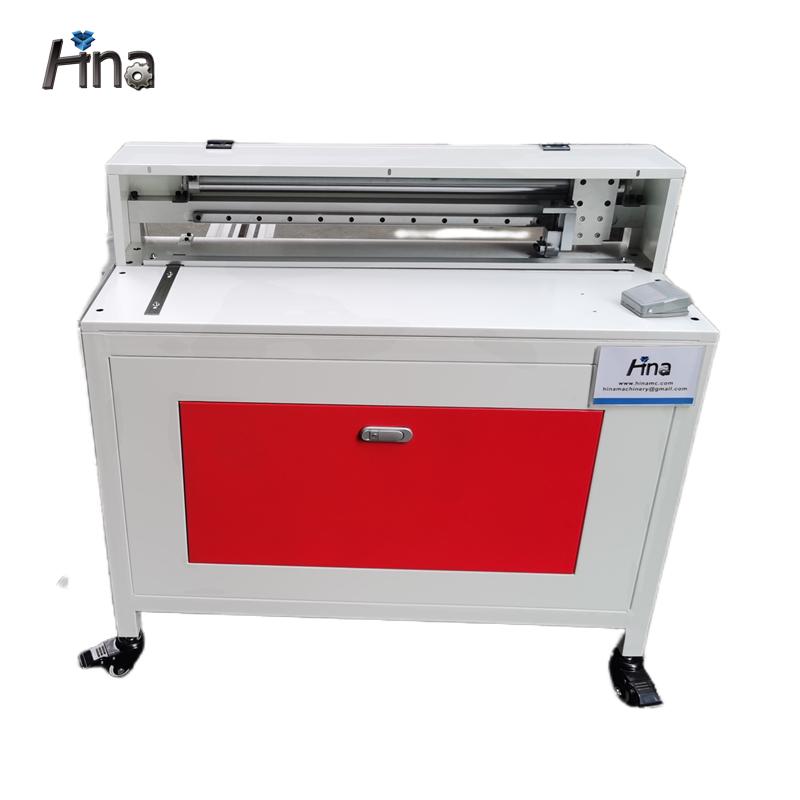

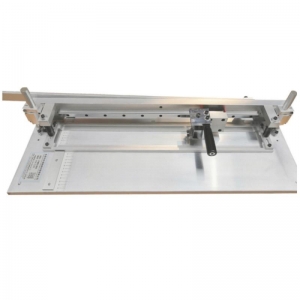

HN-G520 sample grooving machine is a machine used for v-slots grooving sample making of rigid box production, it is also used for small order volume v-slots production. It using high-precision aluminum plate, equipped with a 90 degree head and a 120&140 degree head each. This machine be applied in v-slots grooving of grey-board(Cardboard), MDF board, thin paper, etc. Pneumatic control, easier operation, If need bigger size, the HN-700 sample groover can grooving at 0-700mm width.
