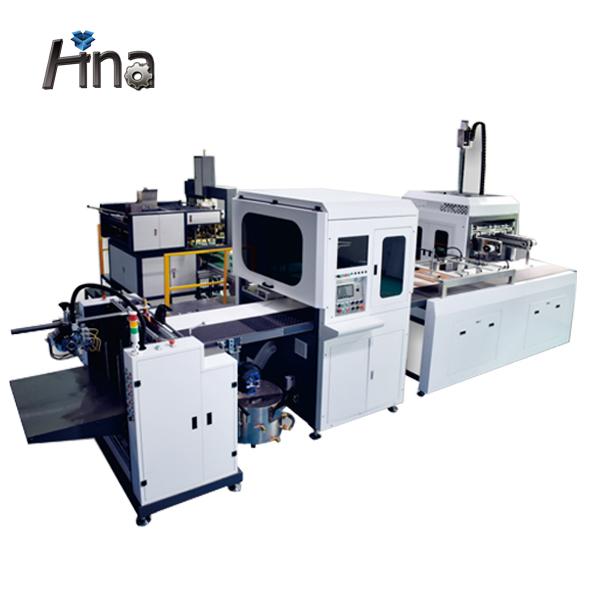

| Name: | HN-4050A Automatic Rigid Box Making Machine |
|---|---|
| Machine model: | HN-4050A |
| Box length: | 65-450mm |
| Box width: | 65-400mm |
| Box height: | 20-120mm |
| Working speed: | 15-22 pcs/min |
| Air pressure: | 10L/min 0.6MPa |
| Machine dimension: | L8500*W5000*H3200mm |
| Machine weight: | 4200kg |
| Inquiry |
Product Description

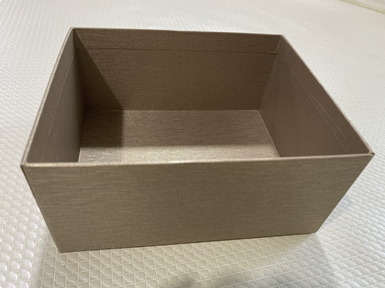

HN-450A Automatic rigid box making machine is used for making rigid box, such as mobile phone boxes, cosmetic boxes, perfume boxes, jewelry box etc. It can finished four-steps at one time:
1) Paper gluing
2) Box positioning
3) Box corner pasting
4) Box wrapping
This is a smart setting model, which can use the same air pressing plates and tucking-in blade for all box sizes, when input the length, width and height of the box, machine can be set automatically. Easy operation, high efficiency, can save a lot of labor cost and time with high output.
Automatic setting after input data
Long ear folding: 0-100mm
Folding to the box bottom
Equipped small size 40*40mm mold install bar
Separate adjust air pressure for bottom mold and side pressing.
 |  |
