Your Location : Home >> Product Center / Rigid box making machinery / Gift box related machine / Double station thumb hole/Nail hole/ finger hole punching machine
| Name: | Double station thumb hole/Nail hole/ finger hole punching machine |
|---|---|
| Machine model: | HN-280 |
| Hole width: | 20 mm(Optional 12/16/20/25/30) |
| Cardboard thickness: | 0-5mm |
| Box size: | 40*40-300*400mm |
| Working speed: | 35 pcs/min |
| Voltage supply: | 220V |
| Air supply: | 0.6 Mpa |
| Machine dimension: | L600*W330*H180mm |
| Machine weight: | 20Kg |
| Inquiry |
Product Description

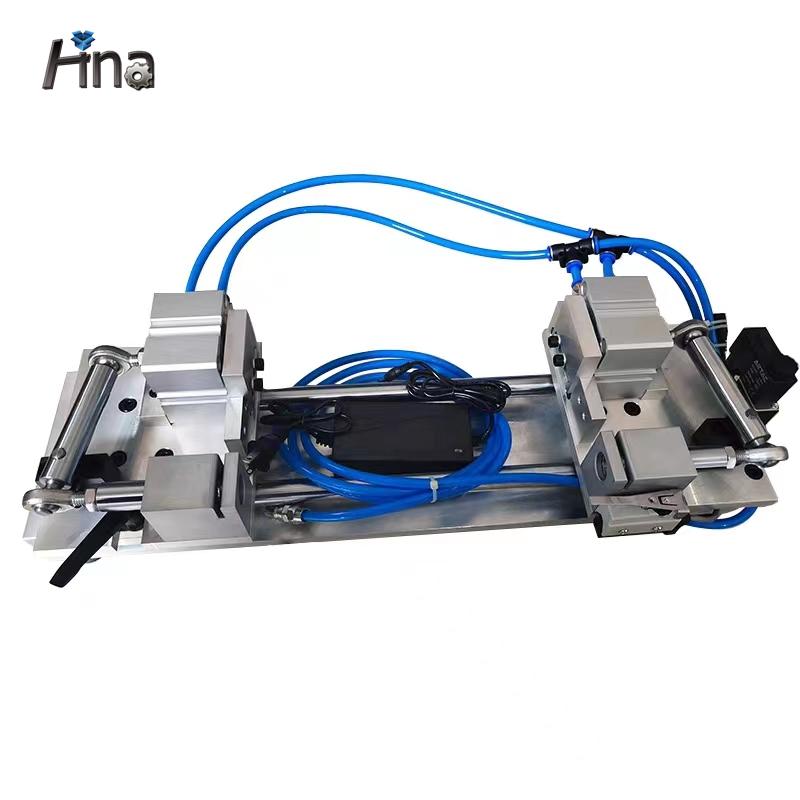

Double station thumb hole/Nail hole/ finger hole punching machine
One machine can be used such as round hole ,PVC hook hole, square hole, round hole, non-standard half nail hole (diameter 12mm, 15mm, 20mm, 25 mm, 30mm)
Solenoid valve switch speed is fast, high efficiency, save manpower
Affordable & economy
Product information

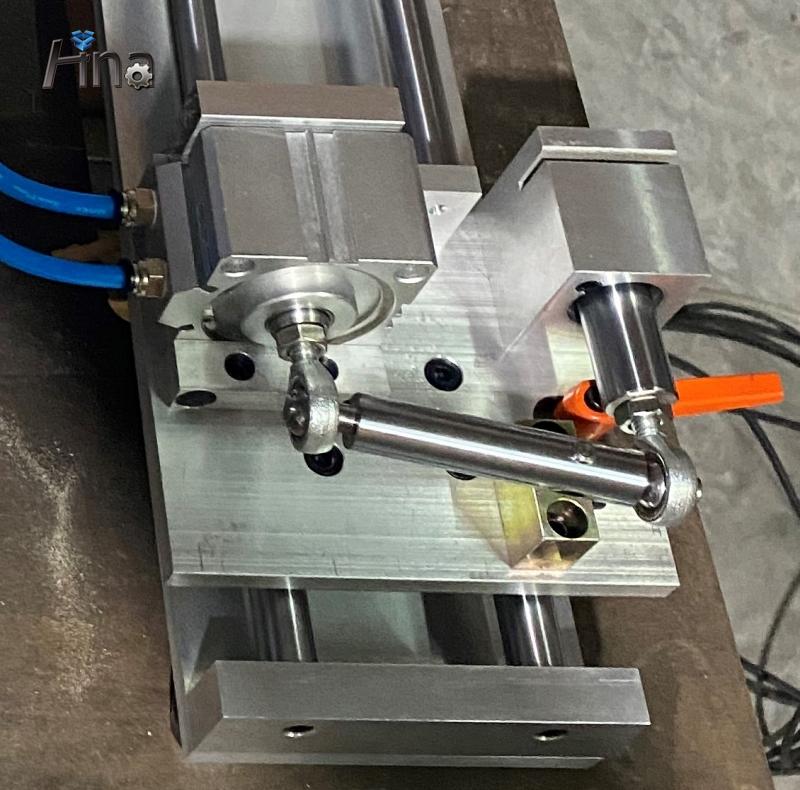

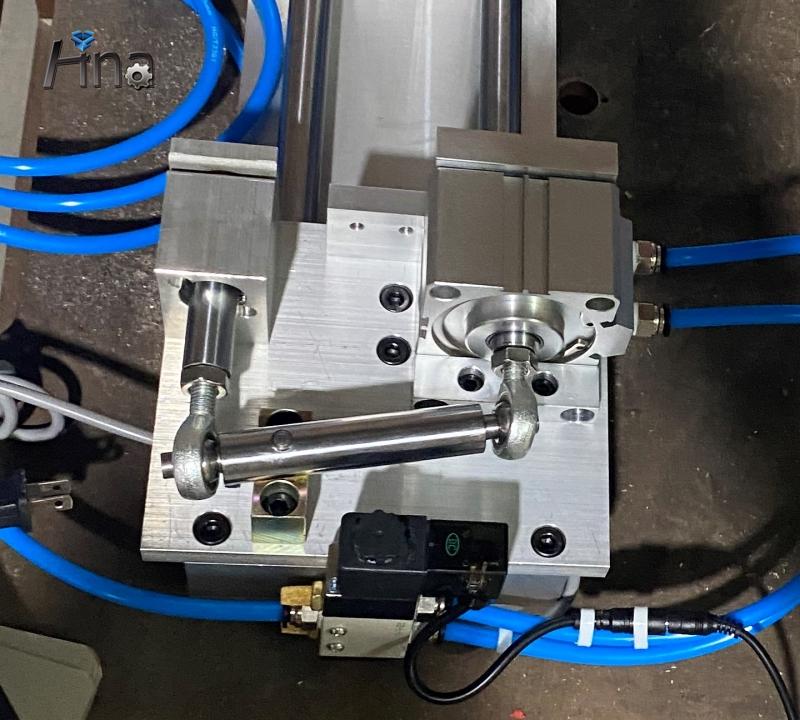

Using the solenoid valve control switch, the speed is 3 times of the pneumatic switch, more effort saving

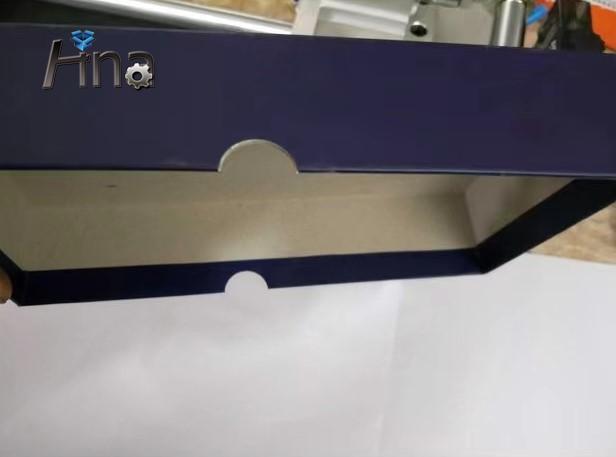

Double nail punching machine for the top&bottom box, mobile phone box, ring box to make nail hole, used to replace the traditional single nail hole machine, both sides punching at the same time.
Positioning two holes at a time, Punching position is accurate, fast, on average every 1-2 seconds a box, time saving, high efficiency, economic, practical.
For each customer special hole position requirements can be customized, single hole, multi-hole punching at one-time processing
Box specification: standard hole specification: 20mm other customized. Processing range: small box 50mm * 50mm, box 300mm * 400mm
