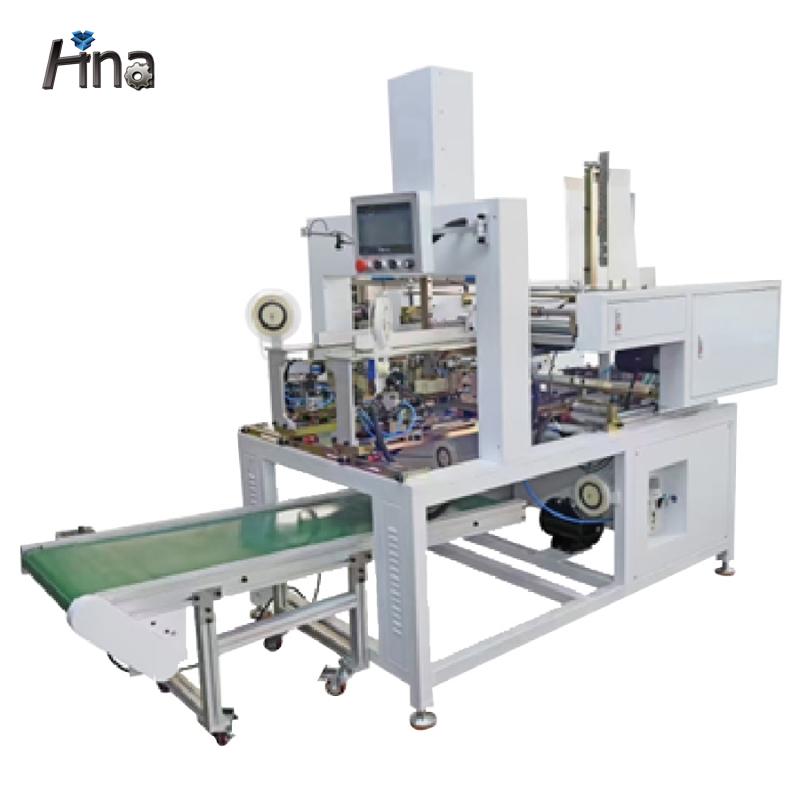

| Name: | HN-T450 Automatic Corner Pasting Machine |
|---|---|
| Machine model: | HN-450 |
| Box length: | 48-450mm |
| Box width: | 48-400mm |
| Box height: | 10-150mm |
| Max cardboard size: | 600*660mm |
| Cardboard thickness: | 1-3mm |

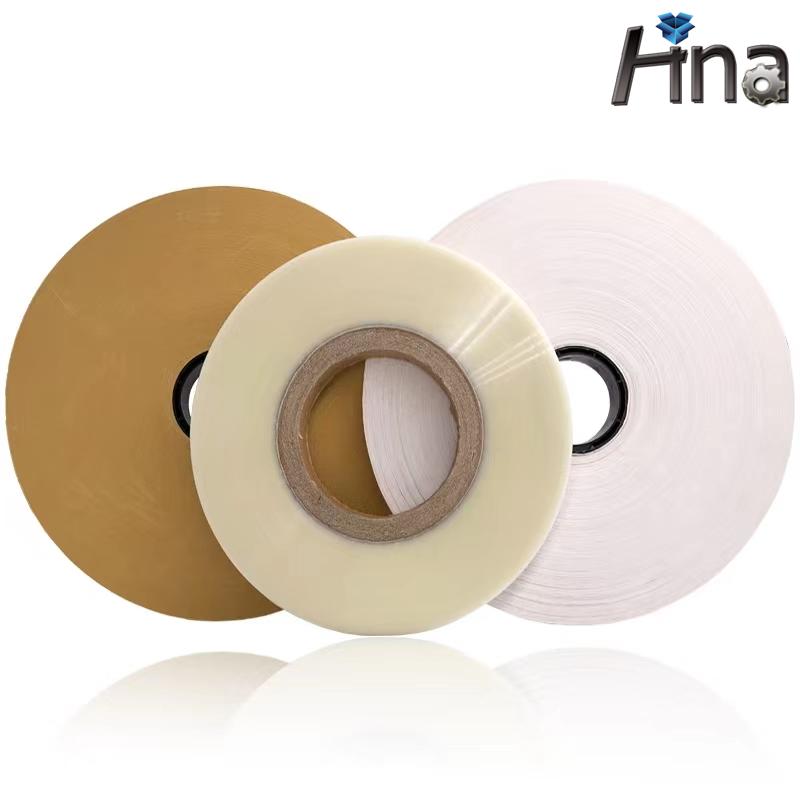

| Tape width: | 19mm |
| Pasting tape length: | 3-50mm |
| Air pressure: | 0.6-0.8 Mpa |
| Motor power: | 2Kw/220V |
| Working speed: | 1000-6000 pcs/H |
| Machine dimension: | L1750*W1160*H1920mm |
| Machine weight: | 800Kg |
| Inquiry |
Product Description
This corner pasting machine has been sold more than 3000 sets. Get high recognition from customers.
Machine setting can be finished within 15 minutes, easy for size changing
① 15 mm Pasting head: 35X35X10mm
② 19mm Pasting head: 48X48X10mm
③ Box Height ≤ 150mm
Features:
Wide working range, can make max height 150mm box
Can apply different color cardboard, such as black, grey, blue etc.
Plug and play. The power plug and air supply connector have been equipped
Step motor driven the paper feeding parts movement
The main shaft adopts the servo drive belt slider to run smoothly up and down to ensure high precision. Low noise and durable.
Machine setting is simple and fast, whole machine setting ready in 15 minutes.
