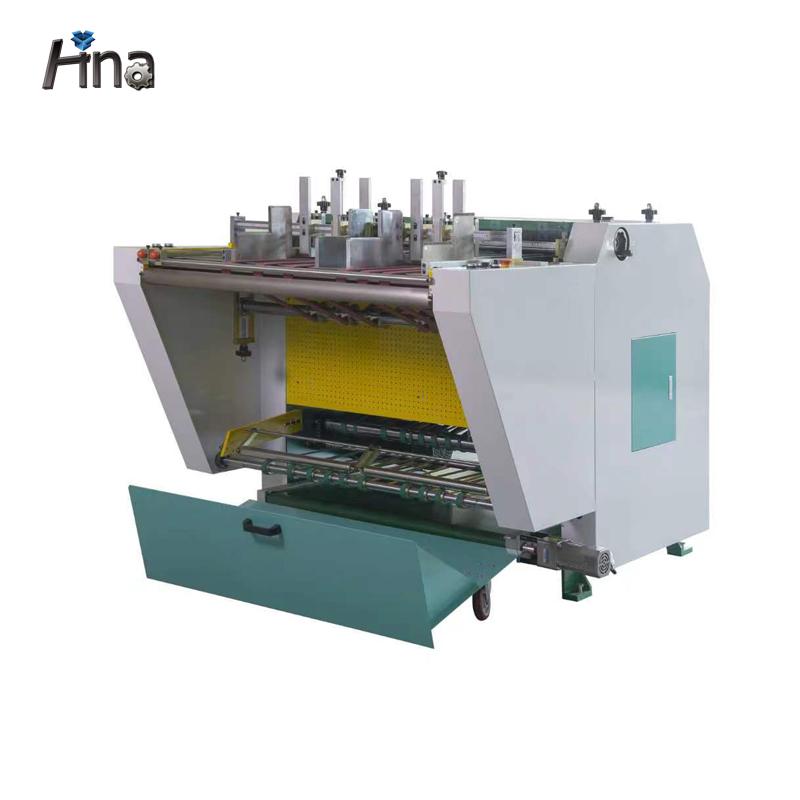

Your Location : Home >> Product Center / V-slots Grooving Machine / Automatic Cardboard grooving machine / HN-1200K Automatic High Speed Cardboard Grooving Machine
| Name: | HN-1200K Automatic High Speed Cardboard Grooving Machine |
|---|---|
| Machine model: | HN-1200B |
| Max grooving slots: | 8 slots |
| Cardboard length: | 90-1050mm |
| Cardboard width: | 90-600mm |
| Slots gap: | 0-1050mm |
| Cardboard thickness: | 0.25-4.6mm |
| Working speed: | 35m/min |
| Motor power: | 1.5kw/220V |
| Machine dimension: | L1460*W1730*H1260mm |
| Machine weight: | 1200Kg |
| Inquiry |
Product Description
HN-1200K Automatic carton paper Grooving Machine is using for cardboard v-slots grooving. It is applied the belt and big roller to conveying the cardboard or other board to grooving blade, whole machine equipped 9 blade holders and able to grooving V slots (80-140 Degree),
L shape slots, U shape slots (Required good material). It is a popular grooving machine in MDF board, cardboard and felt board grooving.
Double paper feeder：
Cardboard aligning system
Double blade seats line
Adjustable grooving angle
Spare belt for change
V-shape grooving blade, including two types. 90 degree and 120 degree blades.
Imported motor
Thicker drum for groovin
Waste cleaning conveyor
Equipped with one automatic grinding machine
For more details, welcome to contact our sales
