Your Location : Home >> Product Center / Gift box related machine / double-side adhesive tape pasting machine / HN-90HCT Semi-automatic double-side adhesive tape pasting machine

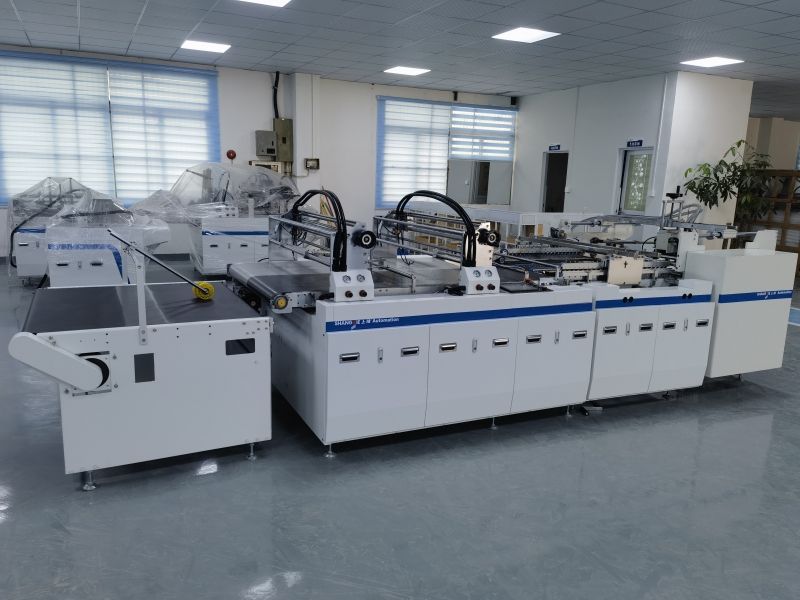

| Name: | HN-90HCT Semi-automatic double-side adhesive tape pasting machine |
|---|---|
| Product Max size: | 700*850mm |
| Product Min size: | 100*100mm |
| Product thickness: | 157g-3mm |
| Width of Tape size: | 6-38mm( 10-60mm custom-made） |
| Pasting head: | 2-4 pcs |
| Speed: | 50-90 m/min |
| accuracy: | ±1mm |
| Power supply: | 220V single phase |
| Machine Dimension: | L4215*W1440*H1600mm |
| Weight: | 700 kg |
| Inquiry |
Product Description
1. Automatic feeding paper, bottom paper feeding system , high efficiency paper blade
2. It is equipped with SICK sensor and servo control to achieve the accurate position.
3.A new adhesive structure is built at the adhesive joint, which can enhance the adhesive performance.
4.With the introduction of the humanmanchine interface,touch screen and PLC,
the total process of parameter settings is much easier.The length of joint can be set randomly through the man-machine interaction.
5. It applies continuous box-accumulating form.
