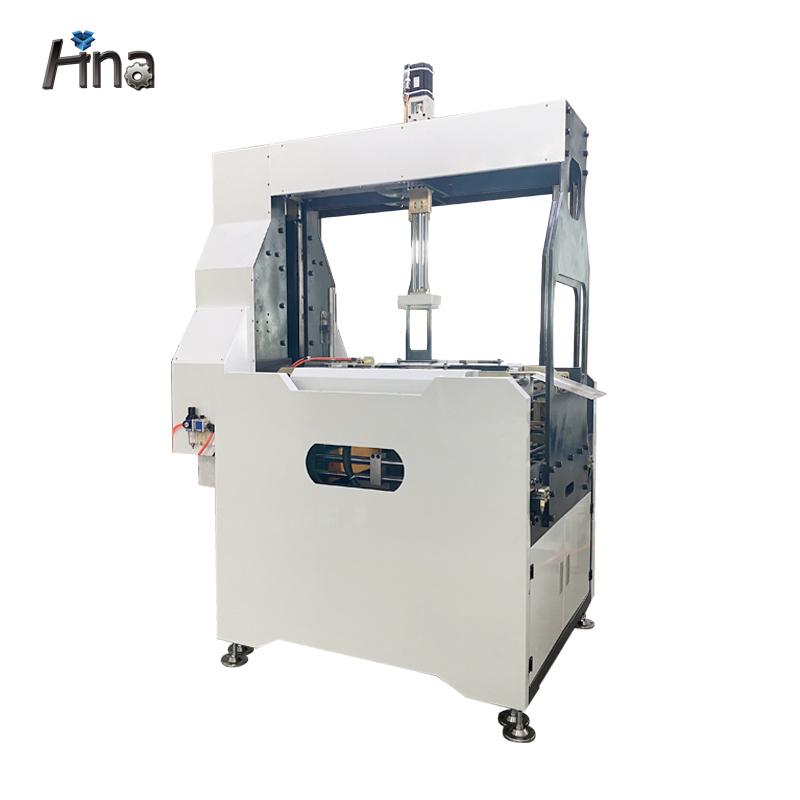

| Name: | HN-600S Rigid box making machine |
|---|---|
| Machine model: | HN-600D |
| Max box size: | L580*W420*H120mm |
| Min box size: | L40*W40*H10mm |
| Motor power: | 2Kw/220V |
| Working speed: | ≤20 pcs/min |
| Air pressure: | 10L/min 0.6MPa |
| Machine dimension: | L1500*W1100*H2030mm |
| Machine weight: | 1100kg |
| Inquiry |
Product Description
HN-600S rigid box making machine adopts PLC programming technology, touch screen man-machine interface, parameter setting and fault display, fault shutdown function, using import servo and stepper motor control, precision track, high-end brand screw bearing roller, low failure rate, high precision, the production process is fully automatic.

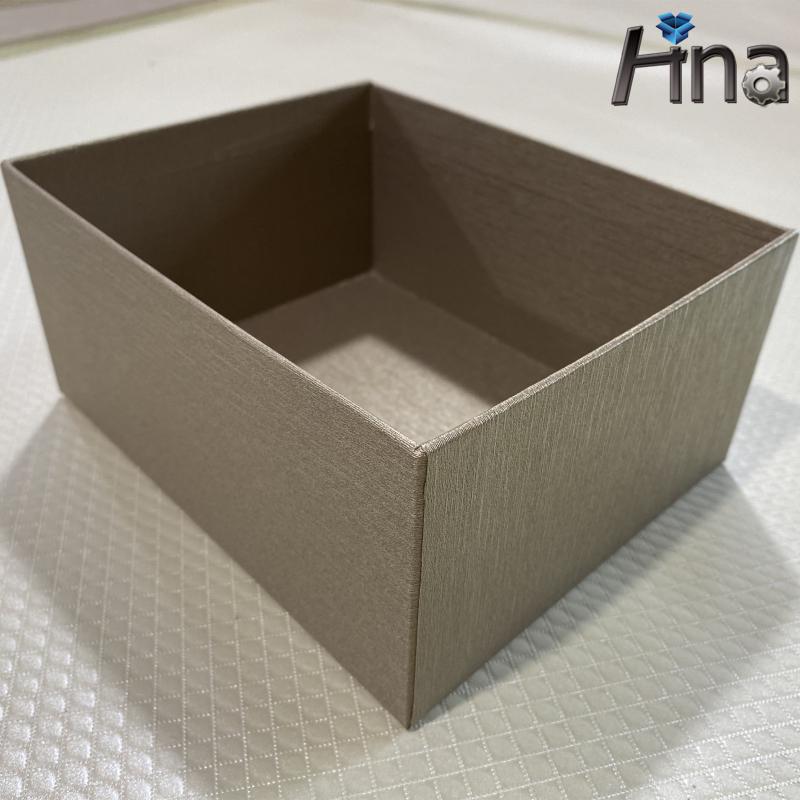

It is not change the air pressing board and tucking-in blade, input the length, width and height of the box, the machine automatically adjust the mold, the adjustment time is short, the paper can be folded to the end, ear folding length adjustable (0-100mm). Wrapping paper, bubble pressing and box off at one time. It is using for making rigid box, premium box, cosmetic box, ring box, jewelry box, phone box, gift box, shoe box, etc.
Automatic setting after input data
Long ear folding: 0-100mm
Folding to the box bottom
Equipped small size 40*40mm mold install bar
Separate adjust air pressure for bottom mold and side pressing.
 |  |
