Your Location : Home >> Product Center / Gift box related machine / Ribbon pasting machine / HN-RP-450B Flat inserting and pasting machine

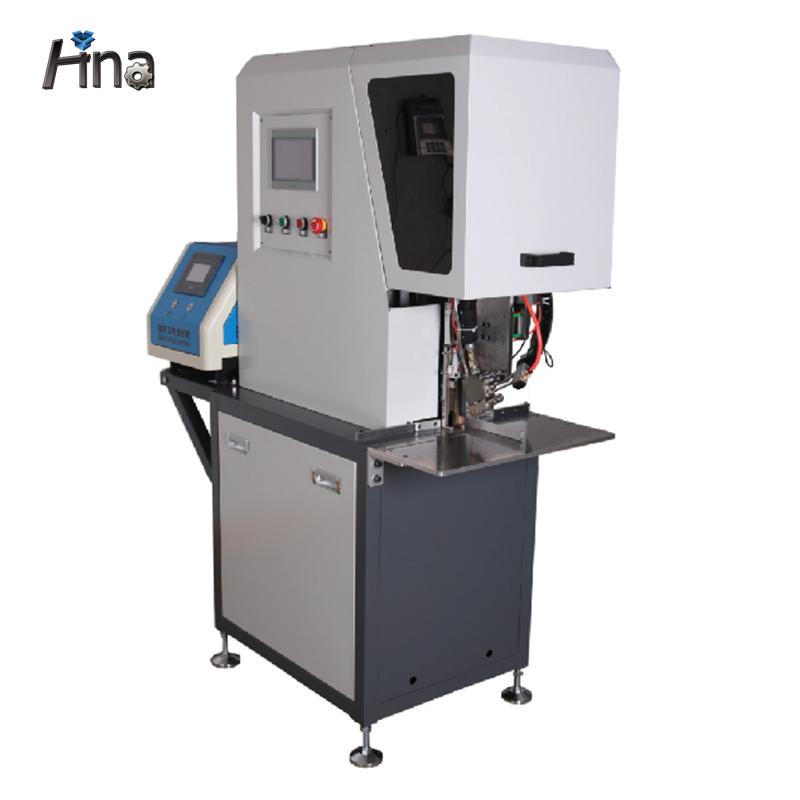

| Name: | HN-RP-450B Flat inserting and pasting machine |
|---|---|
| Model: | HN-RP-450B |
| Power supply: | 220V,50HZ |
| Air pressure: | 0.6 Mpa |
| Working speed: | 20-25 pcs/min |
| Ribbon width: | 5-20mm |
| Ribbon length (Out): | 10-60mm |
| Ribbon length at box: | 7-20mm |
| Board width: | 30-500mm |
| Max box size: | 450*400*120mm |
| Min box size: | 50*50*15mm |
| Machine weight: | 200Kg |
| Machine size: | 1240*620*1650 mm |
| Total power: | 1.5Kw |
| Inquiry |
Product Description
Product introduction

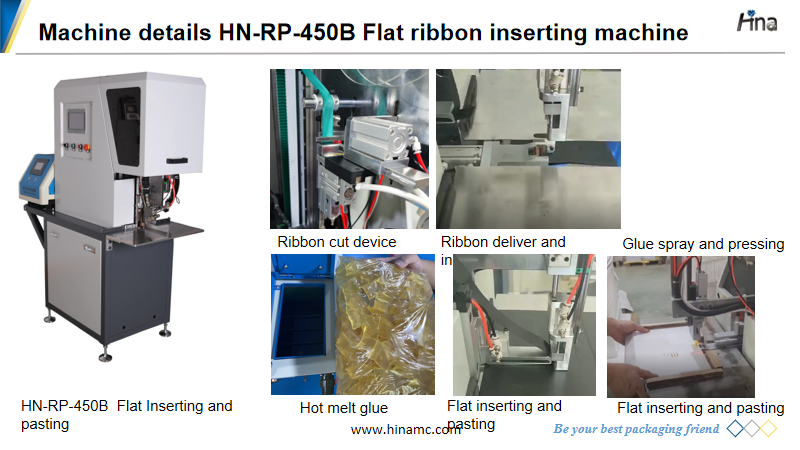

The ribbon machine is controlled by PLC, driven by servo motor and cylinder, which cuts the ribbon to a fixed size (10-60mm) and sticks it on the product with hot melt glue. Machines include
Flat ribbon sticking machine (Pasting at top)
Drawer box ribbon machine (Box Inserting and pasting)
Flat and drawer box ribbon dual-function machine. (Flat Inserting and pasting)
It is widely used in the production of various high-quality packaging boxes, jewelry boxes, cosmetic boxes, wine boxes, clothing boxes, shoe boxes, food boxes and other types boxes.
For more details, Welcome to contact our sales
