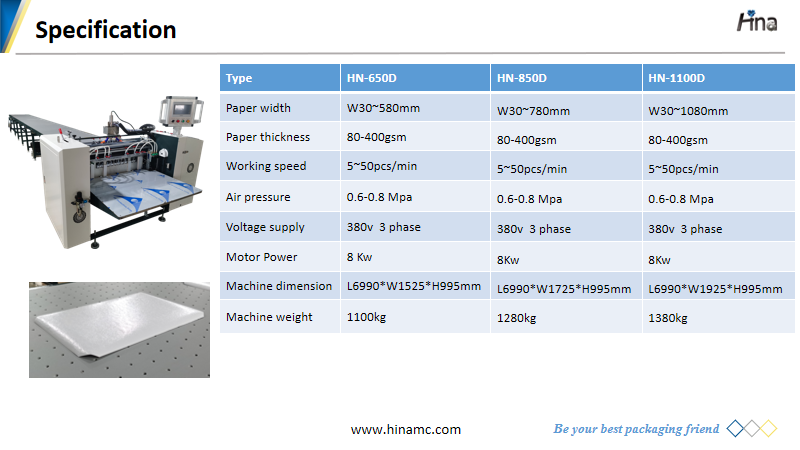

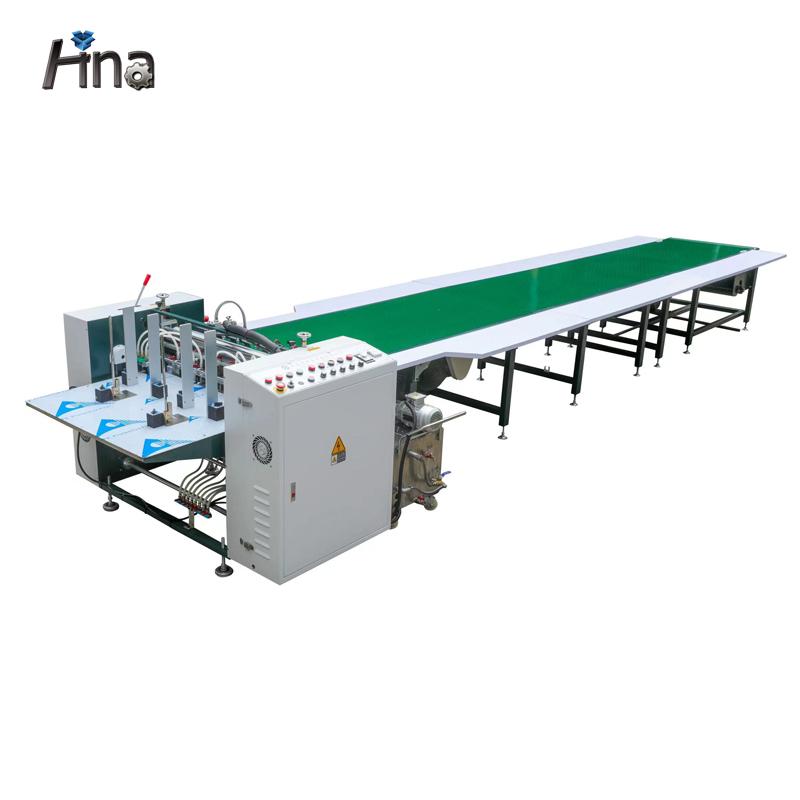

| Name: | HN-650D Automatic smart paper gluing machine |
|---|---|
| Type: | HN-650D |
| Paper width: | W30~580mm |
| Paper thickness: | 80-400gsm |
| Working speed: | 5~50pcs/min |
| Air pressure: | 0.6-0.8 Mpa |
| Voltage supply: | 380v 3 phase |
| Motor Power: | 8Kw |
| Machine dimension: | L6990*W1525*H995mm |
| Machine weight: | 1100kg |
| Inquiry |
Product Description
Automatic smart paper gluing machine is an upgrade model for paper gluing machine, it improve the feeding efficiency, glue speed and conveyor stop function. What`s more, whole machine is only 6.99m lenght, shoter than old model 7.8m. This machine will be the popular equipment of the packaging factory.
Features

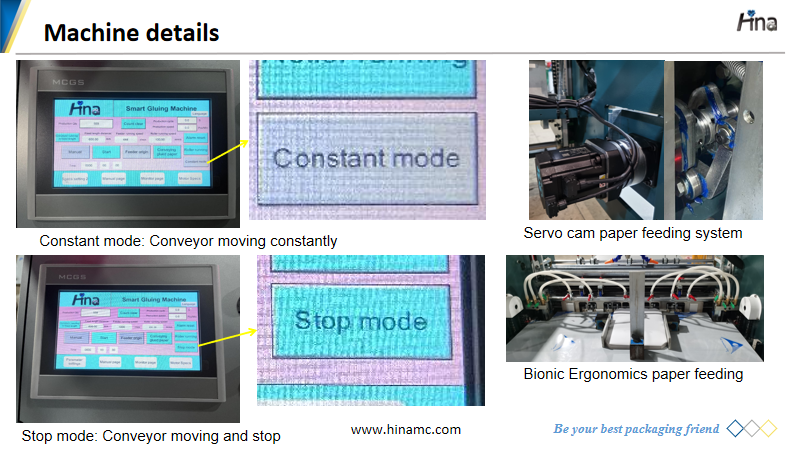

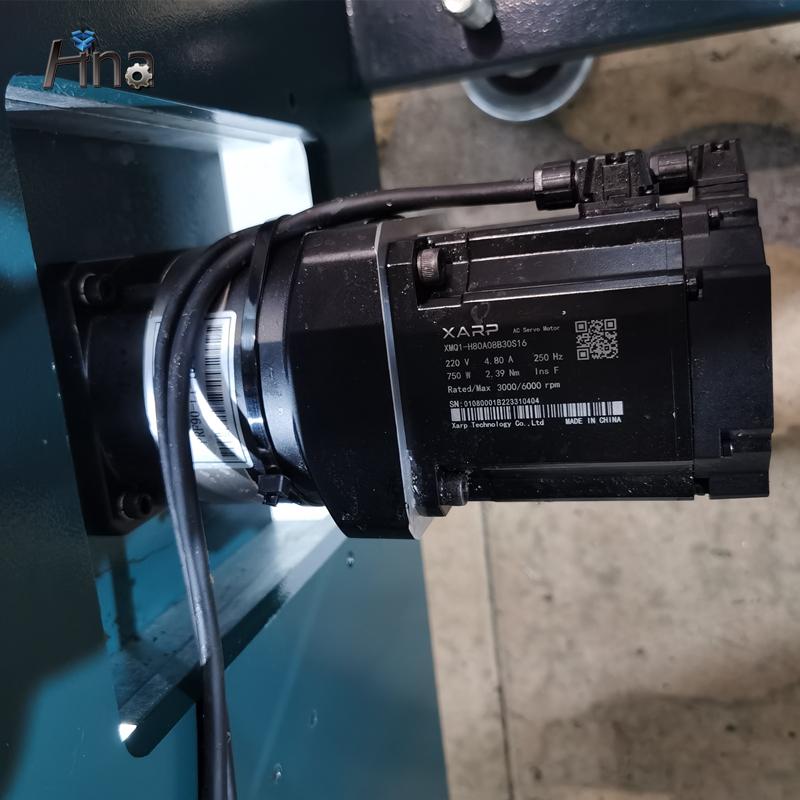

Servo control with stop function: one button to exchange the continuous and intermittent mode

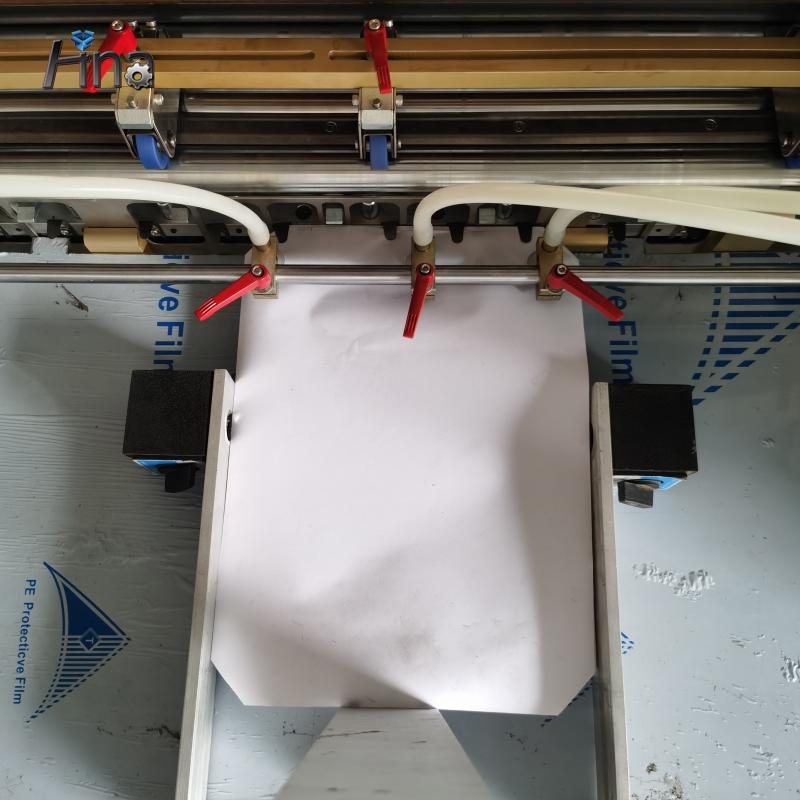

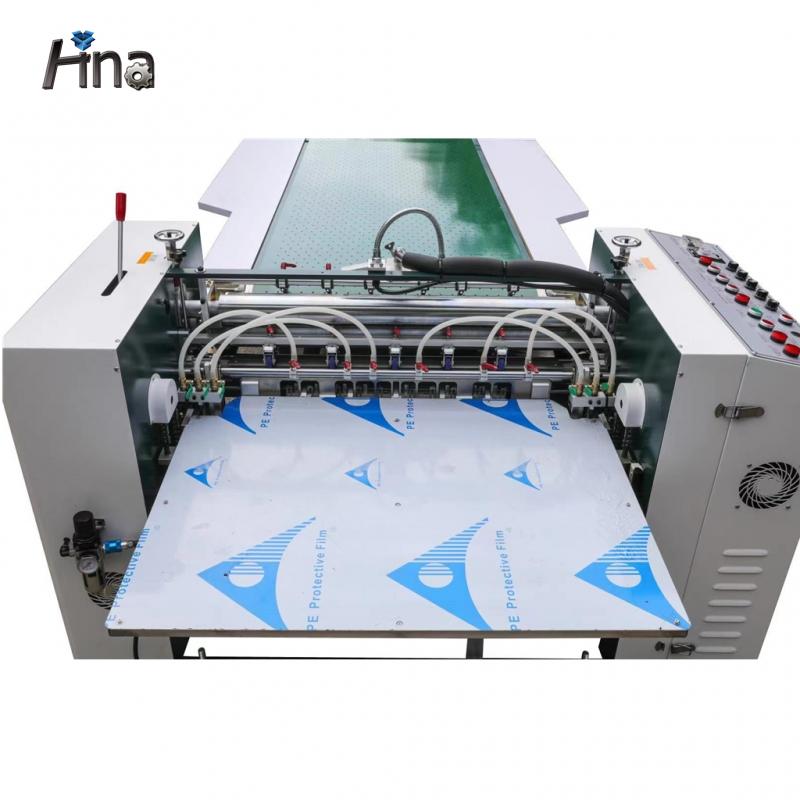

Bionic Ergonomics paper feeding: reduce double paper feeding efficiently

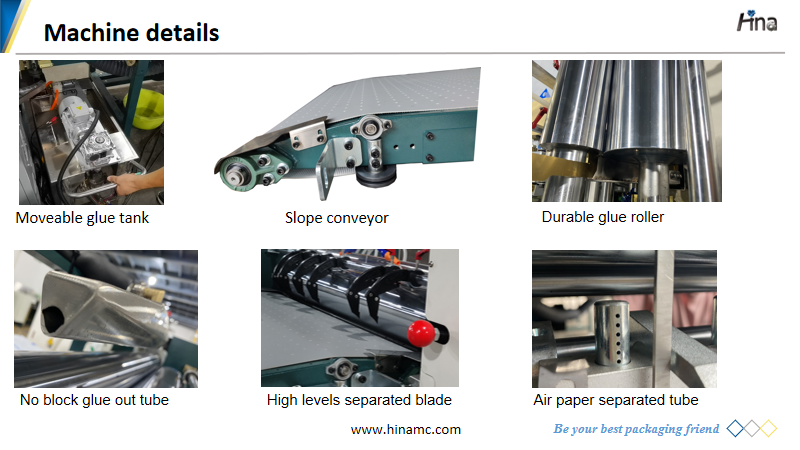

Moveable glue tank with mixing function: keep glue heating balanced

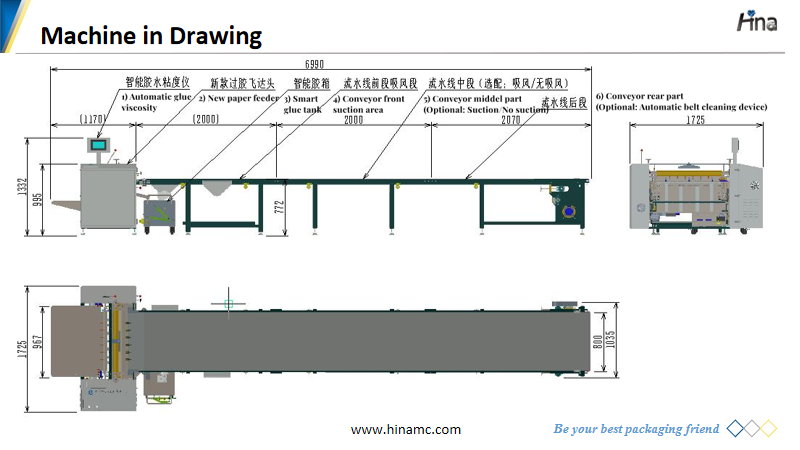

Shorter length: easy for shipment and installation, 6.99m total length, less space needed
Slope conveyor: make paper gluing more fluently and easier to feed narrow paper
Durable glue roller: with chromium on the surface
Touch screen control: easier control to work with other machines

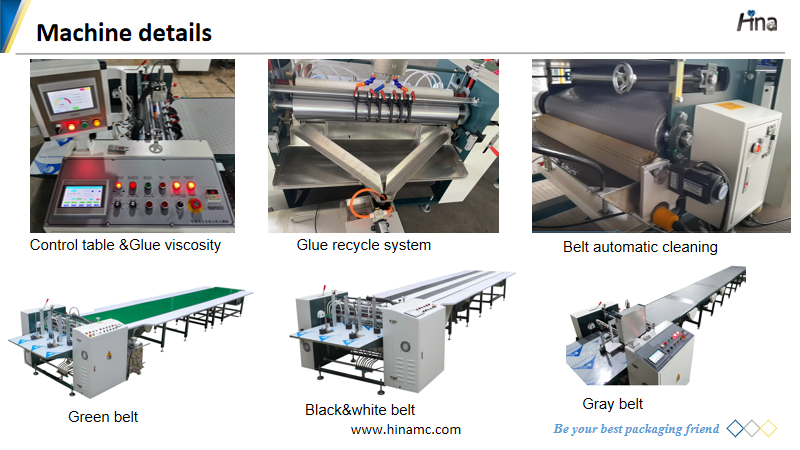

Changeable belt color: suitable for different demand (Optional)
Two meter suctions area in the conveyor (4m suction area optional)
Automatic glue viscosity device: keep glue thickness stable without labor control (Optional)
Automatic belt cleaning device: release hands and save time (Optional)
